Services
Precision Machining
Turning, milling, Swiss, and screw machine production from one shop, one quality system, and one point of contact.
Multi Axis CNC Turning
Our turning cells run up to 8 axes with live tooling, Y and C axis capability, and sub spindles, so complex parts finish complete in one operation instead of moving between machines. Fewer setups means tighter relationships between features and less handling risk on high value material.
- Profiling, grooving, boring, and threading
- Rotary broaching for internal forms
- Up to 8 axes with live tooling and sub spindle
- One operation manufacturing, part complete off the machine

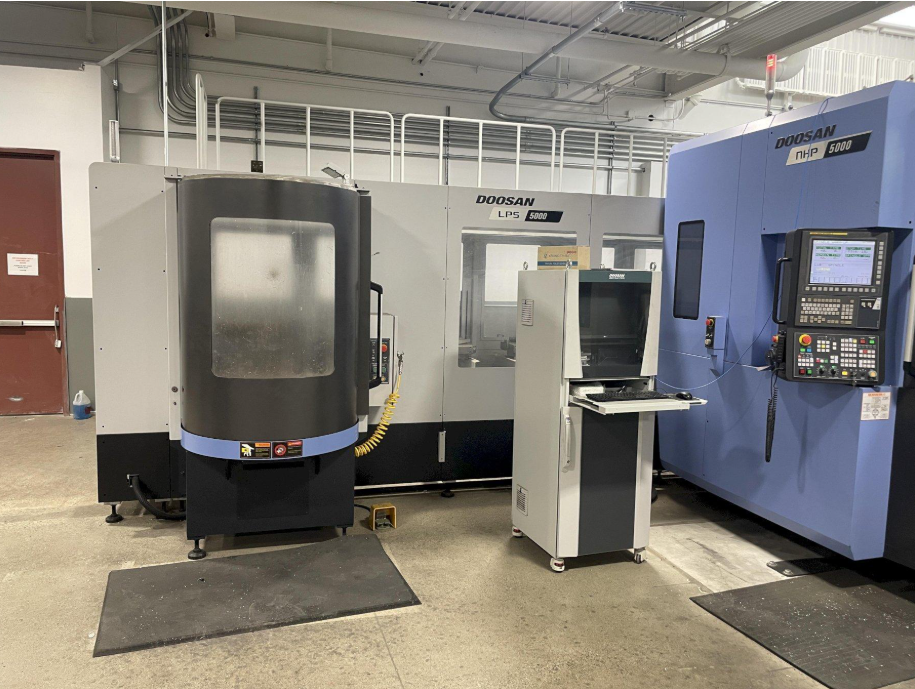

Multi Axis CNC Milling
Horizontal and vertical machining centers with dual pallet changers and 4th axis rotary keep spindles cutting while the next fixture is loaded. That throughput is what makes long production runs of milled components economical without giving up close tolerance work.
- Facing, contouring, and pocketing
- Thread milling and helical boring
- Dual pallet horizontal machining centers
- 4th axis rotary for multi sided parts

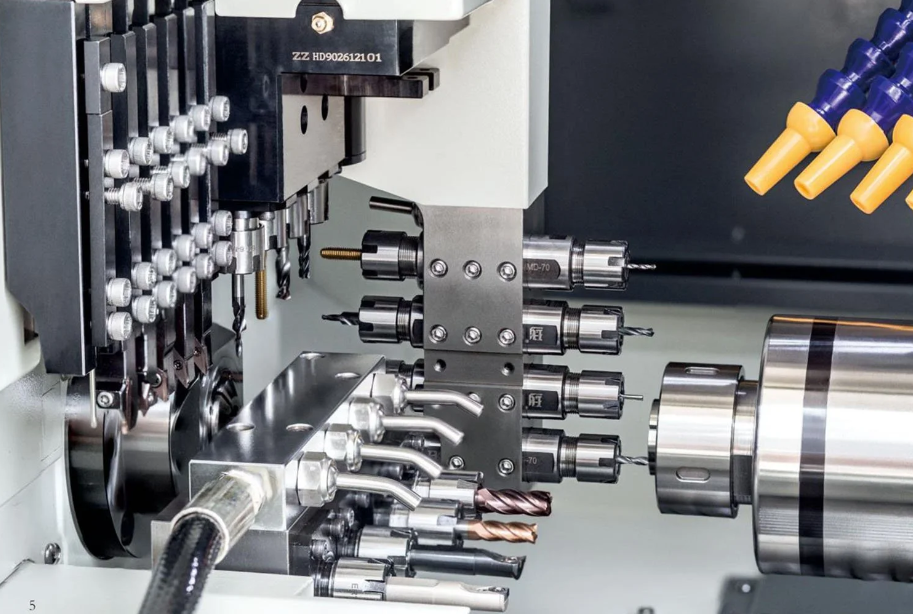

CNC Swiss Machining
Eight axis Star Swiss lathes with guide bushings support long, slender parts right at the cutting tool, which is what allows high length to diameter ratio components to hold size along their full length. Capacity to 1.25 in diameter with tolerances held under .0002 in.
- 8 axis Star Swiss turning centers
- Up to 1.25 in bar capacity
- High length to diameter ratio parts
- Tolerances under .0002 in

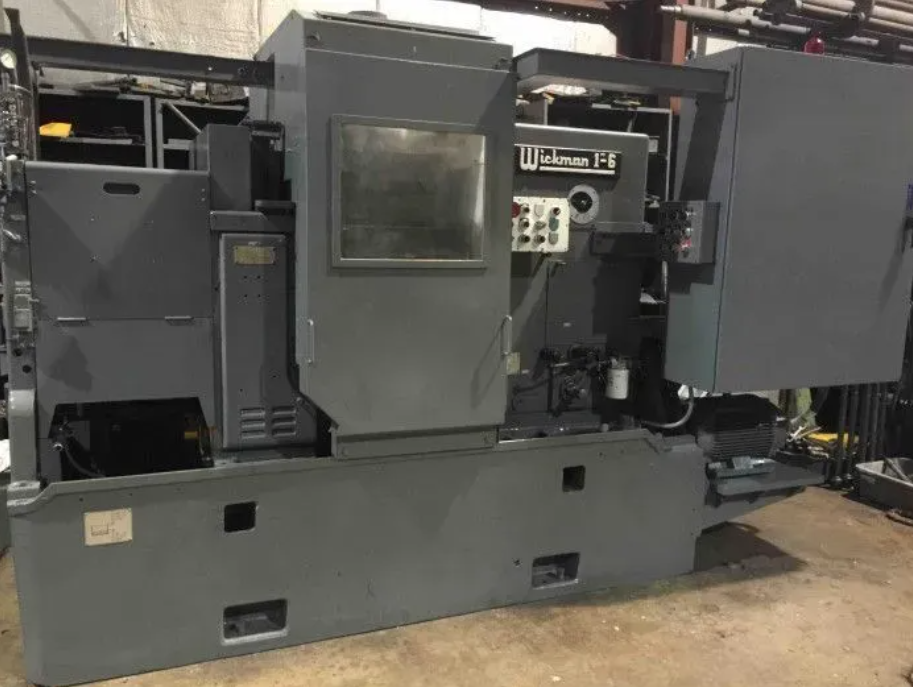

Automatic Screw Machine Products
Cam driven Wickman six spindle automatics remain the most cost effective way to produce very high volumes of small turned parts. Once a job is cammed and tooled, cycle to cycle consistency is repeatable across hundreds of thousands of pieces.
- Cam driven 6 spindle automatics
- Very high volume production
- Consistent quality across long runs
- Secondary operations handled in house
Have a print ready? Send it over and we will come back with pricing, lead time, and any manufacturability notes.
